Quick Start Step 2 - Position Image

Using your mouse, position your image beneath the wedge-shaped segment template. The mouse action changes as you move the mouse over or next to the image. The shape of the mouse pointer changes to indicate which action will occur when you click the mouse button.


To resize the image, move the mouse over any of the corners, then click and drag.



To rotate the image, click and drag the mouse outside the image boundary.



To move the image around the workspace staging area, position the mouse over the image, then click and drag.


The goal is to position the image so that the portion you want to use for the kaleidoscope is inside the segment template. Use the thumbnail on the upper right as a quick preview of how the positioning will affect your kaleidoscope.

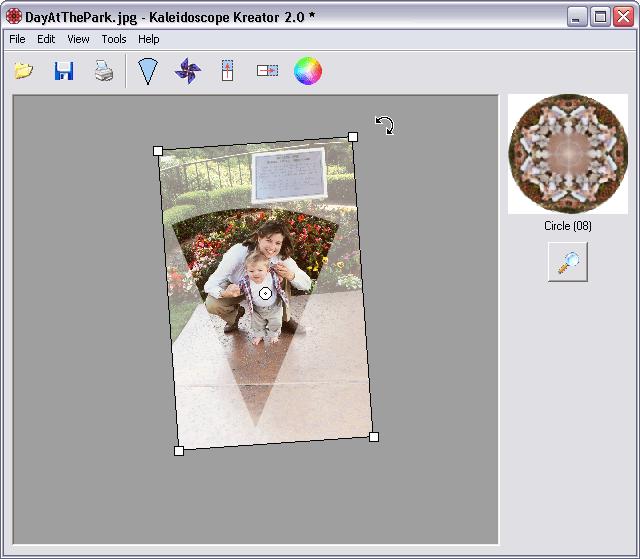

In the example below, the image has been enlarged, moved and rotated to better position the subjects within the segment template:
